Applications
This Helipad Inset lighting system is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.
It could be used as Aiming point light, perimeter light of FATO(Final approach and take-off areas), TLOF Touchdown and lift-off areas), taxiway, runway, flight path Lighting, etc. The emitting color is green or yellow or white or blue. This could meet your project requirements.
Product Description
Main Parameter
| Description | Parameter |
| Mode | AH-HP-IE |
| Light intensity | ≥ 100cd |
| Light source | CREE Ultra high intensity LED |
| Service life of LED | 100, 000hours |
| Flash Characteristics | Steady-burning |
| Operating voltage | 110-240VAC, 48VDC, 24VDC or others |
| Emitting color | Green, White, Yellow, Blue, Red |
| Power | 8W |

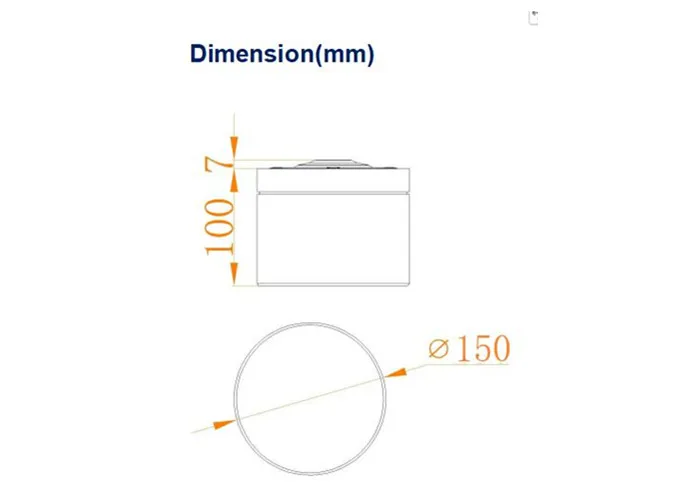

| Overall size(mm) | 150*150 * 107 |
| Installation size(mm) | 170*150*100 |
| Ambient temperature | -55℃~+70℃ |
| Weight | 4.9kg |
| Protection standard | IP68 |
Compliance
** ICAO Annex 14 Volume Two Heliports 5.3.
** FAA AC 150/5390-2B Heliport Design Guide
Company Information
We are a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of helipad lighting system.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website:www.annhung.com www.ahicao.com
Packaging & Shipping
After Sales Service:
We have Professional after-sales team, you could contact with us if you have any problems in your installation, configuration, commissioning, lighting work.We wholeheartedly help each customer.
